Description
Key Features
- 40 x 12G-SDI Inputs, 2 x 12G-SDI Outputs
- 24 x 12G-SDI AUX Outputs
- Standards Converter on Each Input
- 4 x DVE, 16 x Keyers
- 4 x Media Players
- 4 x Multiview Outputs
- Built-In LCD View Screen
- Front Panel or Ethernet Control
- Built-In Fairlight Audio Mixer
- Front and Rear Talkback Connectors

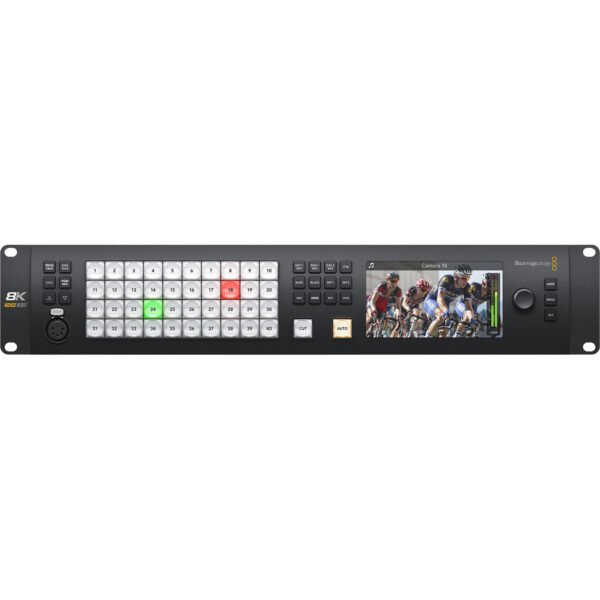

Blackmagic Design ATEM Constellation Specs
Available M/E Layers | 4 M/E |
Effect Types | 4 x DVE 4 x Chroma Key (8K) |
Downstream Keys | 2 x Chroma (8K) 4 x Chroma (UHD) |
Generators | 9 x Pattern 2 x Color |
Processing
Switching Type | Pushbutton |
Processing Resolution | DCI 4K |
Color Processing | 10-Bit 4:2:2 YUV |
Input
Video Inputs | 40 x BNC (12G-SDI) |
Input Video Format | SDI (10-Bit 4:2:2) 8K at 23.98/24/25/29.97/50/59.94 fps UHD 4K 23.98/24/25/29.97/50/59.94 fps 1080p 25/29.97/50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps |
Audio Inputs | 2 x 1/4″ TRS Mono Analog Female |
Output
Video Outputs | 24 x BNC (12G-SDI) |
Output Video Format | SDI (10-Bit 4:2:2) 8K at 23.98/24/25/29.97/50/59.94 fps UHD 4K 23.98/24/25/29.97/50/59.94 fps 1080p 23.98/24/25/29.97/50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps |
Audio Outputs | 2 x 1/4″ Balanced TS Mono Analog Female |
Multiview Output | Yes |
Connectivity
Other I/O | 1 x BNC Genlock Input 1 x RJ45 Control 1 x RJ45 1 x USB-B |
Video Standard Compliance | SMPTE 292M/296M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
HDCP Support | Yes |
Display
Screen Resolution | 1366 x 768 |
Hardware
OS Compatibility | macOS 10.13 macOS 10.14 or Later Windows 8.1 Windows 10 *As of February, 2020: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | Yes |
Bluetooth | Yes |
Power I/O | 2 x IEC C14 Input |
Power Consumption | Device: 100 to 240 VAC (300 W) |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Recommended) |
General
Rack Form Factor | 2 RU |
Dimensions | 19 x 13.23 x 3.54″ / 48.26 x 33.6 x 8.99Â cm |
Weight | 18.5Â lb / 8.39Â kg |
