Description
Key Features
- Encoder, Monitor, Recorder, Switcher
- Intuitive 7″ Touchscreen LCD Display
- Stream via Ethernet, Wi-Fi, 4G LTE
- Stream at up to 1080p60, Supports H.264
- 2 x HDMI, 1 x USB In, 1 x SD Card Input
- Supports H.264/MP4 up to 1080p Video
- Built-In Chroma Key
- Lower-Thirds/Graphic Overlays/Countdown
- Picture-in-Picture & Transition Effects
- Add Logos/Comments to the Stream
YoloLiv Instream Specs
Key Specs
| IP Video |
H.264:
720 x 480 to 1920 x 1080 Encoding |
|---|---|
| IP Audio | AAC-LC: Encoding |
| Simultaneous Streams | 1 Streams |
| Video I/O |
2 x HDMI Input
1 x HDMI Output |
| Embedded Audio | HDMI: 2-Channel |
| Recording Media | 1 x SD (Unspecified Type) |
| Recording Modes | 1920 x 1080p up to 60 fps |
| Display | LCD |
IP Encoding/Decoding
| IP Video |
H.264:
720 x 480 to 1920 x 1080 Encoding |
|---|---|
| IP Audio | AAC-LC: Encoding |
| Transport Protocols | RTMP, RTMPS |
| Simultaneous Streams | 1 Streams |
| Compatible Services | Instagram, TikToK |
Wireless
| Wi-Fi | Yes |
|---|---|
| Bluetooth | No |
| Cellular Support | 4G LTE via Nano-SIM |
| SIM Card Slots | 1 x Nano SIM |
Interfaces
| Video I/O |
2 x HDMI Input
1 x HDMI Output |
|---|---|
| Audio I/O |
1 x 1/8″ / 3.5 mm TRS Stereo Analog Input
1 x 1/8″ / 3.5 mm TRS Mono Analog Input 1 x 1/8″ / 3.5 mm TRS Stereo Analog Output |
| Other I/O |
1 x RJ45 (10/100 Ethernet) Input/Output
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Input |
| Embedded Audio | HDMI: 2-Channel |
Internal Recording
| Recording Media | 1 x SD (Unspecified Type) |
|---|---|
| Recording Modes | 1920 x 1080p up to 60 fps |
Power
| Built-In Battery | 10,000 mAh |
|---|---|
| Power Connector | 1 x USB-C (5 to 12 VDC at 1.5 A) Input |
Environmental
| Operating Temperature | 14 to 104°F / -10 to 40°C |
|---|---|
| Storage Temperature | 41 to 104°F / 5 to 40°C |
General
| Display | LCD |
|---|---|
| Dimensions | 7.4 x 4.4 x 1″ / 188 x 112.5 x 25 mm |
| Weight | 21.2 oz / 600 g |
Product identification
- Product

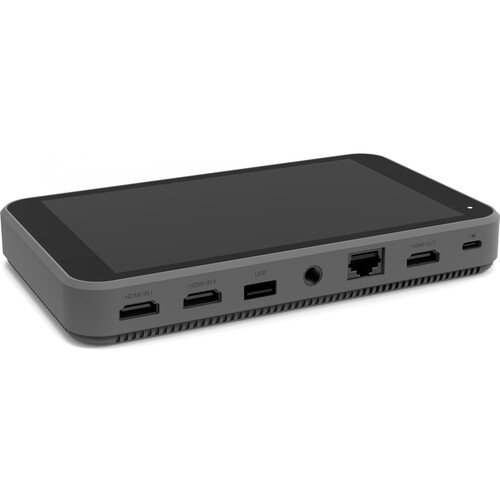

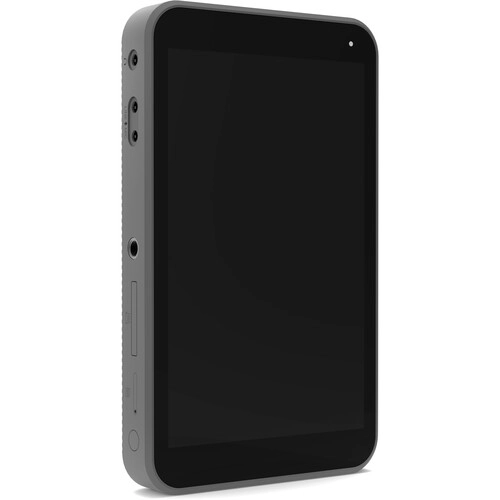

- YoloLiv Instream Vertical Live Streaming Encoder and Monitor
- Brand
- YoloLiv
- SKU / ordering reference
- INSTREAM
