Description

Key Features
Simultaneous Cross-Platform Streaming
Encoder, Monitor, Switcher, and Recorder
5.5″ LCD Touchscreen Control
1 X HDMI Input, 1 X HDMI Output
1 X USB Input
Supports H.264/MP4 up to 1080p Video
Stream via Ethernet, Wi-Fi, 4G LTE
1 x SD Card Slot for Record, up to 128GB
HDCP Compliant, Audio & Mic Input
500 cd/m² Brightness, Built-In Battery

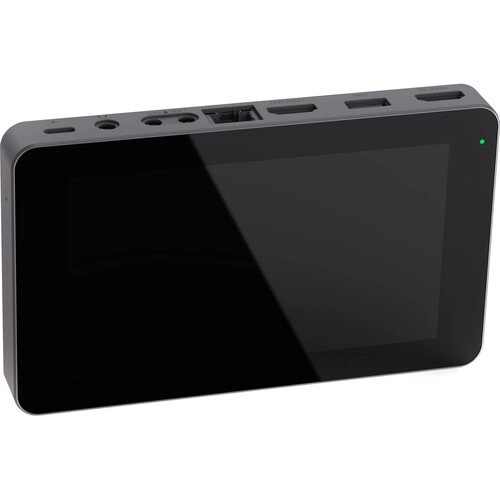

YoloLiv YoloBox Mini Specs
IP Encoding/Decoding
IP Video H.264:
960 x 540 to 1920 x 1080 Encoding
IP Audio AAC-LC: Encoding
Transport Protocols RTMP
Simultaneous Streams 3 Streams
Compatible Services Facebook Live, Twitch, YouTube Live
Wireless
Wi-Fi Yes
Bluetooth None
Cellular
SIM Card Slots 1 x Nano SIM
4G LTE LTE
Interfaces
Video I/O 1 x HDMI Input
1 x HDMI Output
Audio I/O 1 x 1/8″ / 3.5 mm TRS Stereo Analog Input
1 x 1/8″ / 3.5 mm TRS Mono Analog Input
1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output
Other I/O 1 x RJ45 (10/100 Ethernet) Input/Output
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Input
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output
Embedded Audio HDMI/Wireless: 2-Channel
Internal Recording
Recording Media 1 x SD (Unspecified Type)
Recording Modes 1920 x 1080p up to 60 fps
Power
Built-In Battery 4700 mAh
Power Connector 1 x USB-C (5 to 12 VDC at 1.5 A) Input
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 15 to 85%
Storage Temperature 41 to 104°F / 5 to 40°C
General
Display LCD
Dimensions 6.1 x 3.6 x 0.8″ / 155 x 92.6 x 20 mm
Weight 11.3 oz / 320 g
