Description
Key Features
- Control Panel for ATEM Switchers
- Large Info LCD with Rotary Encoders
- Soft-Touch Menu Buttons
- Programmable Color-Backlit Buttons
- LCD Scribble Strips for Buttons
- Weighted T-Bar
- Joystick for DVE and Camera Adjustment
- Control up to 20 Inputs

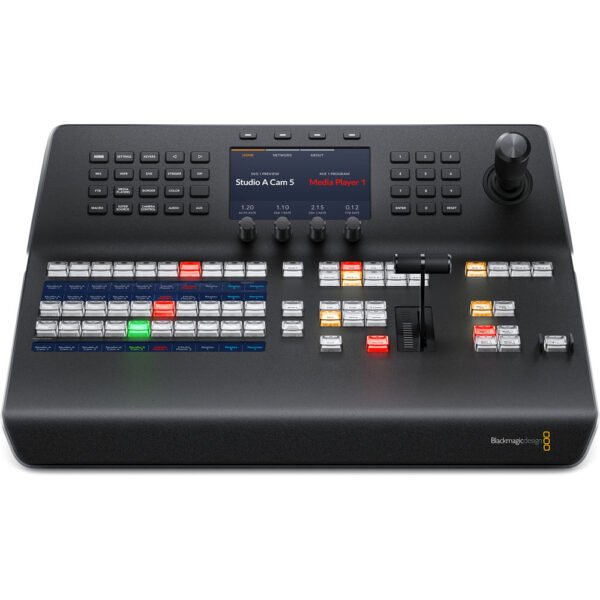

Blackmagic Design ATEM 1 M/E Advanced Panel Specs
| Connections | Ethernet: 2 x RJ45, 10/100/1000BASE-T Firmware: 1 x USB Type-C AC Power: 1 x IEC DC Power: 1 x 4-pin XLR, 12 VDC |
| Power Consumption | 45 W |
| Power Supply | Input: 110-240 VAC |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 140°F / -20 to 60°C Relative Humidity: Up to 95% |
| Dimensions | 15.3 x 16.9″ / 38.9 x 43 cm |
| Weight | 12.7 lb / 5.7 kg |
