Description
Key Features
1920 x 1080 Touchscreen Display
HDMI 2.0 Input/Output, AtomOS 10
Record up to 8K30 ProRes RAW
1000 cd/m² Brightness
AtomHDR 10.5-Stop Dynamic Range
Records to 2.5″ Mini or Standard SSDs
10-Bit 4:2:2 ProRes & DNxHR Encoding
Single Sony L-Series Battery Slot

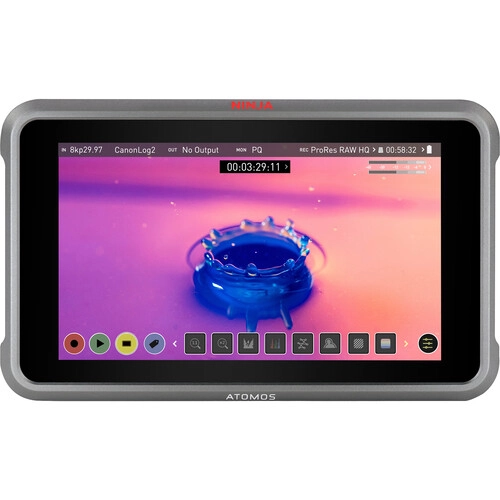

Atomos Ninja V+ Specs
Display
Panel Type IPS-Type LCD
Display Size 5.2″ / 13.2 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1000 nits / cd/m2
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
HDR Compatibility HDR10, Hybrid Log Gamma
Pixels Per Inch (ppi) 423 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, Pixel Zoom, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O 1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
Embedded Audio HDMI: 2-Channel
HDMI: 8-Channel
Audio I/O 1 x 1/8″ / 3.5 mm Mic/Line Input
1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x D-Tap Input
Other I/O 1 x 2.5 mm (LANC)
Media/Memory Card Slot Single Slot: SSDmini/SSD with Master Caddy II/III
Format Support
Video Format HDMI (8/10-Bit 4:2:2)
8K Raw: 30
6K Raw: 30
5K Raw: 30
4K Raw: 120/100/60/59.94/50/30/29.97/25/24/23.98
DCI 4K: 120/100/60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Gamma Curve Rec709
Timecode Support Yes
Recording
Pulldown Conversion 2:2, 3:2
Camera Trigger HDMI
Pre-Roll Record 4K: 2 Seconds
Full HD: 8 Seconds
Encoding Formats Up to 7680 x 4320
ProRes 422, 422 HQ, LT, Raw, Raw HQ 10/12-Bit 4:2:2
DNxHD 36, 145, 220x, HQ, HQX, LB, SQ 10/12-Bit 4:2:2
DNxHR HQ, HQX, LQ, SQ 10/12-Bit 4:2:2
H.265 420, 422, HQ, LQ, MQ 8/10-Bit 4:2:2
Maximum Audio Tracks 12
Power
DC Input Power 5.8 to 7.2 VDC
Built-In Battery None
Battery Type 1 x L-Series
Power Consumption 10 W (Typical)
22 W (Maximum)
Mounting
Mounting 2 x 3/8″-16 Female
Environmental
Operating Temperature 104°F / 40°C
General
Material of Construction Aluminum, Polycarbonate
Dimensions 5.9 x 3.6 x 1.2″ / 151 x 91.5 x 31.5 mm
Weight 12.7 oz / 360 g
