Description
Key Features
- 1/2.5″ Progressive-Scan CMOS Sensor
- 4096 x 2160 Resolution at 20/24p fps
- 3.2mm 12MP 4K Lens (Preinstalled)
- 6G-SDI Video Output
- Interchangeable Lens Design
- Audio Input
- RS-485 for Remote Communication
- SMPTE 292M, 424M & 2081-10 Conformant

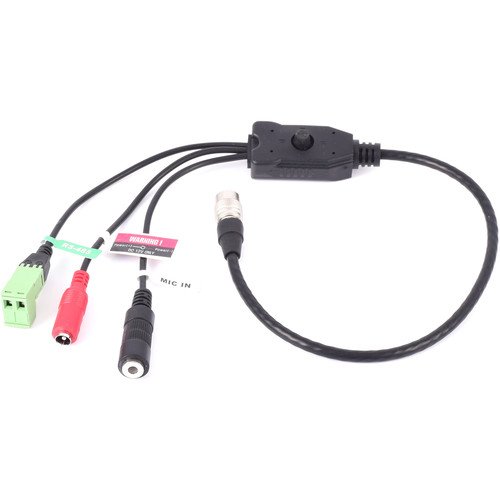

- OSD Control Breakout Cable
- 12 VDC Power Supply & Socket Adapter
AIDA Imaging UHD6G-200 Specs
Video
| Image Sensor | 1/2.5″ progressive CMOS |
|---|---|
| Sensor Size | 8.365 X 6.615 mm (16:9) |
| Effective Pixels |
Horizontal: 3840
Vertical: 2160 |
| Pixel Size |
Horizontal: 1.62 μm
Vertical: 1.62 μm |
| Resolution | 4096 X 2160, 3840 x 2160, 1920 x 1080, 1280 x 720 |
| Resolution / Frame Rate |
4K (4096 X 2160) at 20/24p
2160p at 30/29.97/25/24 1080p at 60/59.94/50/30/29.97/25/24 1080i at 60/59.94/50 720p at 60/59.94/50/30/25 |
| Output | 1 x HD/3G/6G-SDI BNC port |
| Color Space | 4:2:2 (YCbCr) 10-bit |
Function
| White Balance | AWB / AE / AF |
|---|---|
| Exposure | Full auto, bright, shutter priority, iris priority, manual |
Lens
| Lens | C/CS mount |
|---|
Audio
| Input | 3.5 mm analog audio jack over input/output cable |
|---|---|
| Sample Rate | 16/24/32 bits |
Standard
| SMPTE | SMPTE 292M, SMPTE 424M, SMPTE 2081-10 |
|---|
Physical
| Camera Control |
RS-485
OSD Button |
|---|---|
| Power | 12 VDC (9 to 15 VDC) |
| Operation Temperature | 15 to 120°F / -9.4 to 48.9°C |
| Dimensions | 2.20 x 2.20 x 2.83″ / 56 x 56 x 72 mm |
| Weight | 0.37 lb / 170 g |
Product identification
- Product
- AIDA Imaging UHD6G-200 4K POV Professional EFP Camera
- Brand
- AIDA Imaging
- SKU / ordering reference
- AIDA-UHD6G-200
