AIDA Imaging 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens
AIDA Imaging 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens - Image 2
AIDA Imaging 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens - Image 3
AIDA Imaging 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens - Image 4
AIDA Imaging 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens - Image 5

AIDA Imaging 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens

Call for Price

AIDA Imaging 3G-SDI/HDMI Full HD Genlock Camera with 4mm Fixed Lens

GEN3G-200

SKU: GEN3G-200 Categories: , Tag:

Description

Key Features
  • Capture up to 1080p60 Resolution Video
  • C/CS Mount with 4mm Lens Included
  • Auto Iris, 3G-SDI and HDMI Outputs
  • Tri-Level Sync Genlock, Noise Reduction
  • Wide Dynamic Range, White Balance
  • RS-485 Input, Auto-Iris Lens Connector
  • Breakout Cable with OSD Controls
  • Embedded Audio, 3.5mm Analog Input
  • Rugged, Compact Design

AIDA Imaging GEN3G-200 Specs

Video
Image Sensor
1/3″ Progressive Scan CMOS
Sensor Size
5.346 x 3.003 mm (16:9)
Effective Pixels
1920 x 1080
Pixel Size
2.75 x 2.75 µm
Video Resolution Supported
1080p: 60, 59.94, 50, 30, 29.97, 25
1080i: 60, 59.94, 50
720p: 60, 59.94, 50, 30, 25

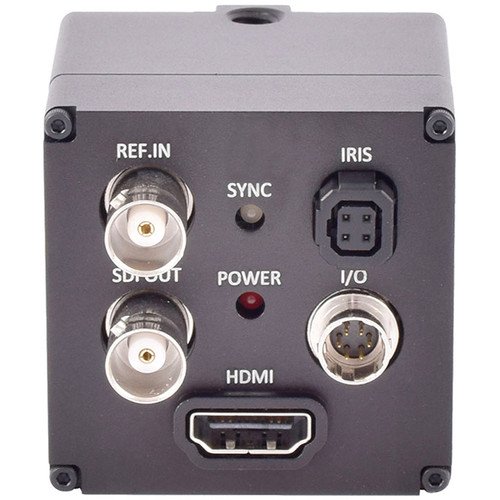

Video Output Connectors
1 x BNC, 3G-SDI
1 x HDMI 1.3a
Other I/O
1 x 4-Pin, Auto-Iris
Breakout Cable Connectors
1 x 3.5 mm, Analog Audio
1 x RS-485, Camera Control
1 x Power
Color Space
4:2:2 YCbCr, 10-Bit
Minimum Illumination
0.2 lux (Day)
0.1 lux (Night)
0.005 lux (Slow Shutter ON)
White Balance
9000K to 11,000K
SMPTE
SMPTE 292M, SMPTE 424M
Lens
Focal Length
4mm
Lens Mount
C/CS Mount
Audio
Sample Rate
16/24/32-Bit
General
Genlock
External Tri-Level Input
Controls
RS-485, OSD Button on Breakout Cable
Power Source
12 VDC (9 to 15 VDC), 6 W
Operation Temperature
32 to 104°F / 0 to 40°C
Dimensions
With Default 4mm Lens: 1.92 x 1.92 x 2.79″ / 49 x 49 x 71 mm
Weight
With Default 4mm Lens: 6.3 oz / 180 g

Additional information

Weight 2 lbs
Dimensions 11 × 8 × 6 in
