Description
- Zero-Latency Routing Switcher
- 10 x 12G-SDI Inputs/10 x 12G-SDI Outputs
- Supports Up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- Push-Button, Knob & Ethernet Control
- 2.2″ Front Panel LCD Status Display
- SDI Reclocking, 1 RU Form
- Includes Videohub Mac/Windows Software
Blackmagic Design 10×10 Specs
Processing
| Switching Type |
Pushbutton, Software
|
| Processing Resolution |
DCI 4K at 60
|
| Color Processing |
8-Bit 4:2:2
10-Bit 4:2:2
12-Bit 4:4:4
|
| Audio Processing |
48 kHz / 24-Bit
|
Input
| Video Inputs |
10 x BNC (12G-SDI)
|
| Input Video Format |
SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
|
| Embedded Audio Input |
SDI
|
Output
| Video Outputs |
10 x BNC (12G-SDI)
|
| Output Video Format |
SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
|
| Embedded Audio Output |
SDI
|

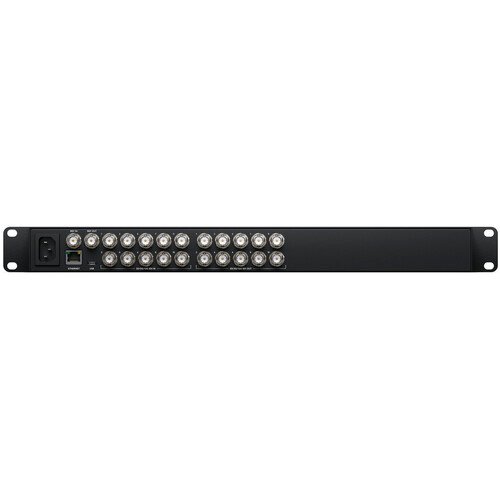

Connectivity
| Other I/O |
1 x RJ45 LAN
1 x USB-C
|
| Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
ITU -R BT.601/BT.656
|
Hardware
| OS Compatibility |
macOS 12.0
macOS 13.0 or Later
Windows 10 (64-Bit Only)
Windows 11
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
|
| Wi-Fi |
None
|
| Bluetooth |
None
|
Power
| Power I/O |
1 x IEC C14 (100 to 240 VAC) Input
|
| Power Consumption |
20.8 W
|
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
0 to 90% (Non-Condensing)
|
General
| Rack Form Factor |
1 RU
|
| Dimensions |
19 x 9.3 x 1.74″ / 48.3 x 23.6 x 4.42 cm
|
| Weight |
6.64 lb / 3.01 kg
|
